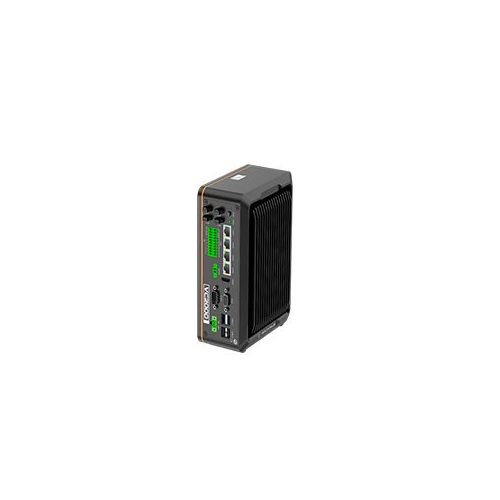

HIKROBOT MV-VC2040-128G40-1T :: Vision индустриален PC, 128 GB SSD + 1 TB HDD, 166×205.6×86мм, 8GB RAM, Celeron J6412 CPU, Win10

SKU: MV-VC2040-128G40-1T

HIKROBOT
Наличност:

1 бр.
  • Използва процесор Intel® Elkhart Lake за изчисления.
  • Поддържа GPIO функция.
  • Поддържа 4-канално управление на светлинния източник.
  • Използва GigE интерфейси за стабилно предаване на данни.
  • Вграденият USB интерфейс или адаптер е по избор.

Документи:

DrawingData SheetUser Manual

2201.45 лв.
1125.58 €

1 бр.

Model Product Model MV-VC2040-128G40-1T
Type VC2000 Vision Controller，J6412，8GB+128G SSD+ 1THDD；
Performance CPU J6412
Memory 8 GB
Storage 128 GB SSD + 1 TB HDD
GPU Intel® UHD Graphics for 10th Gen Intel® Processors
Operating system Unactivated 64-bit Windows 10
Encryption Encryption method Not supported
External interface Video output HDMI interface × 1, VGA interface × 1Supports dual display outputs, max. resolution 1920 × 1080 @60 Hz
Digital I/O Opto-isolated input × 8, opto-isolated output × 8
Network interface GigE interface × 4
USB interface USB 2.0 × 2, USB 3.0 × 2
Serial port RS-232 × 1, supports switching to RS-485 or RS-422
Light interface Light interface with 24 VDC constant voltage × 4 (Max. current 3 A for single light interface, total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control)
Electrical feature Power supply 24 VDC
Power consumption Typ. 48 W (without light source)

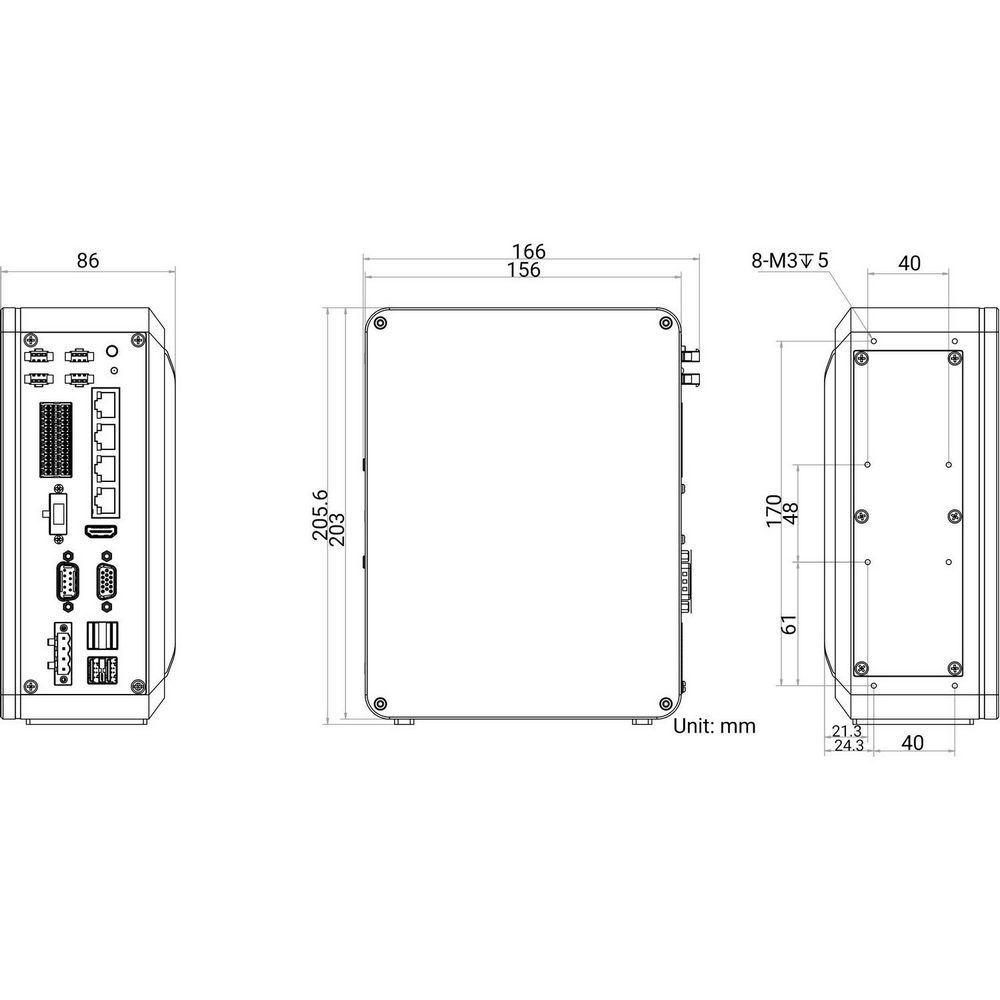

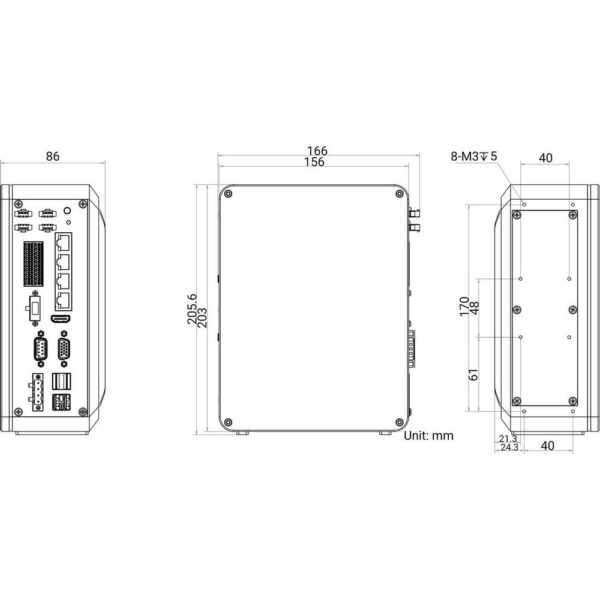

Mechanical Dimension 166 mm × 205.6 mm × 86 mm (6.5″ × 8.1″ × 3.4″)
Weight Approx. 2 kg (4.4 lb.)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity 20% to 80% RH, non-condensing
General Certification CCC, CE, KC
