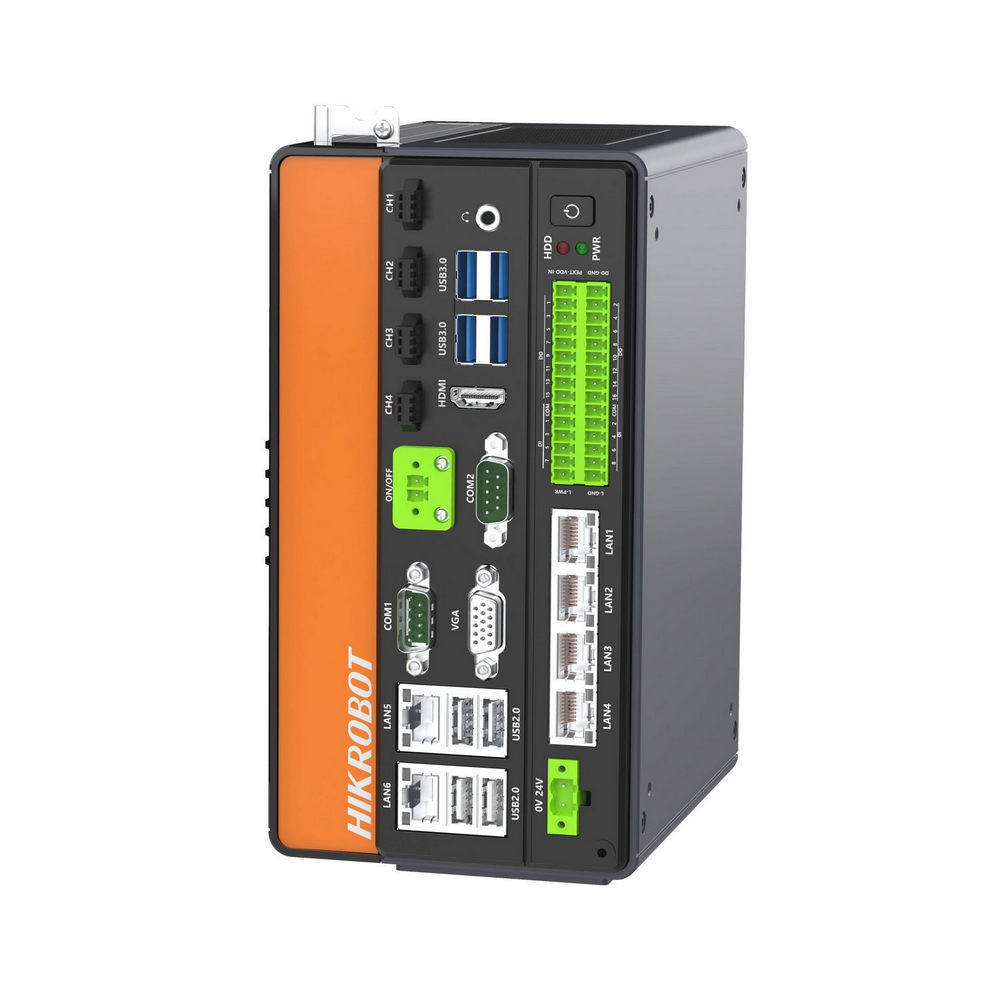

HIKROBOT MV-VC3101H-128G60 :: Vision индустриален PC, 128 GB SSD, 8 GB RAM, G4900 CPU, mSATA×1, SATA×1, Win10 x64

SKU: MV-VC3101H-128G60

HIKROBOT
Наличност:

Изчерпан
  • Оборудван с desktop-level процесор Intel 8-мо поколение, осигуряващ висока изчислителна мощ
  • Удобна конфигурация на слотовете за разширение, отговаряща на разширяването на често използвани интерфейси за заснемане на изображения за machine-vision
  • Поддържа GPIO функция, изходът поддържа NPN/PNP превключване
  • Поддържа PCIE3.0 x16 интерфейс
  • Опционален вграден USB интерфейс, удобен за внедряване и поддръжка на място

Документи:

DrawingUser ManualData Sheet

2490.12 лв.
1273.18 €

Изчерпан

Model Model MV-VC3101H-128G60
Name G4900, 8GB+128G SSD, no POE, support PCIE expansion;
Performance Processor Intel® CeleronTM G4900
Memory 8GB
Storage 128G SSD
Graphics Processor Intel® HD Graphics 610
Operating System Windows 10 64-bit, not activated
Encryption Encryption method None
External interface Video output 1 HDMI port, 1 VGA port
Support simultaneous independent display output
Maximum support 1920 × 1080 @60Hz
Digital I/O Support 8-way optocoupler isolation input
Support 16-way optocoupler isolation output (support NPN/PNP switching)
Network interface 6 Intel Network port
USB port 4 USB2.0 ports
4 USB3.0 ports
1 built-in USB2.0 port
Serial port 2 full-function RS-232, support RS-485 and RS-422 switching
Light source interface 4-channel 24 V constant voltage light source drive, single-channel maximum power consumption 72 W, four-channel maximum power consumption 80 W
Expansion interface 1 PCIE3.0 x16 port
Electrical characteristics Power supply 24 VDC
Typical power consumption 95 W

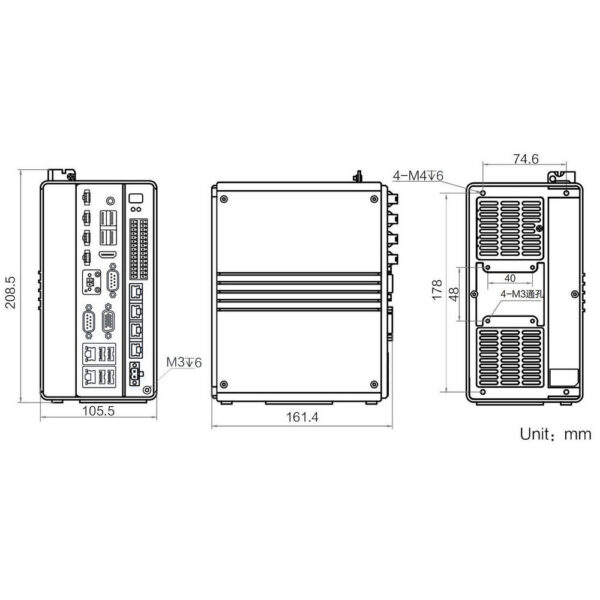

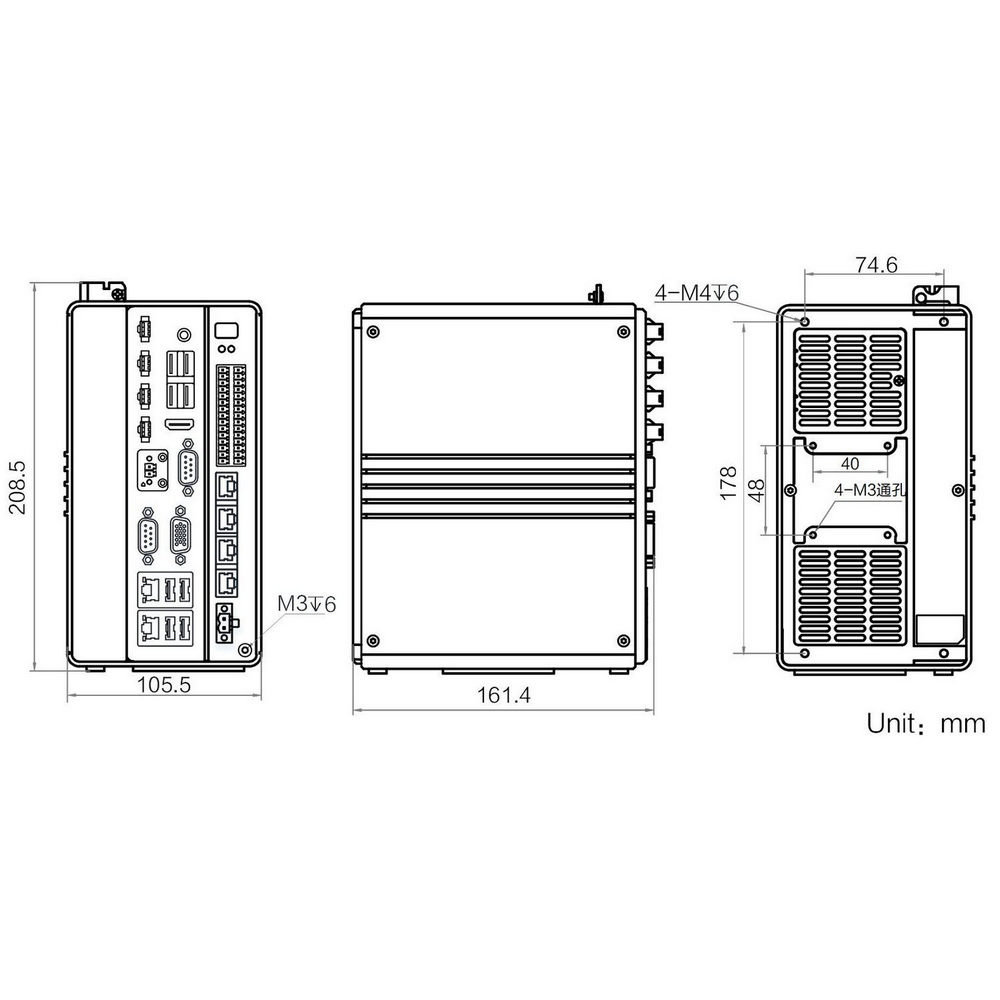

Structure Dimensions 161.4 mm × 208.5 mm × 105.5 mm
Weight Approx. 2.1 kg
Temperature 0 ~ 50 °C
Humidity 20%~95% RH non-condensing
General Specifications Certification CE, KC
Model Model MV-VC3101H-128G60
Name G4900, 8GB+128G SSD, no POE, supports PCIE expansion;
Performance Processor Intel® CeleronTM G4900
Memory 8GB
Storage 128G SSD
Graphics Processor Intel® HD Graphics 610
Operating System Windows 10 64-bit, not activated
Encryption Encryption Method None
External Interface Video Output 1 HDMI port, 1 VGA port
Supports simultaneous independent display output
Maximum support 1920 × 1080 @60Hz
Digital I/O Support 8-way optocoupler isolation input
Support 16-way optocoupler isolation output (support NPN/PNP switching)
Network Interface 6 Intel Network port
USB port 4 USB2.0 ports
4 USB3.0 ports
1 built-in USB2.0 port
Serial port 2 full-function RS-232, support RS-485 and RS-422 switching
Light source interface 4-channel 24 V constant voltage light source drive, single-channel maximum power consumption 72 W, four-channel maximum power consumption 80 W
Expansion interface 1 PCIE3.0 x16 port
Electrical characteristics Power supply 24 VDC
Typical power consumption 95 W
Structure Dimensions 161.4 mm × 208.5 mm × 105.5 mm
Weight Approx. 2.1 kg
Temperature 0 ~ 50 °C
Humidity 20%~95% RH non-condensing
General Specifications Certification CE, KC
