Суичове

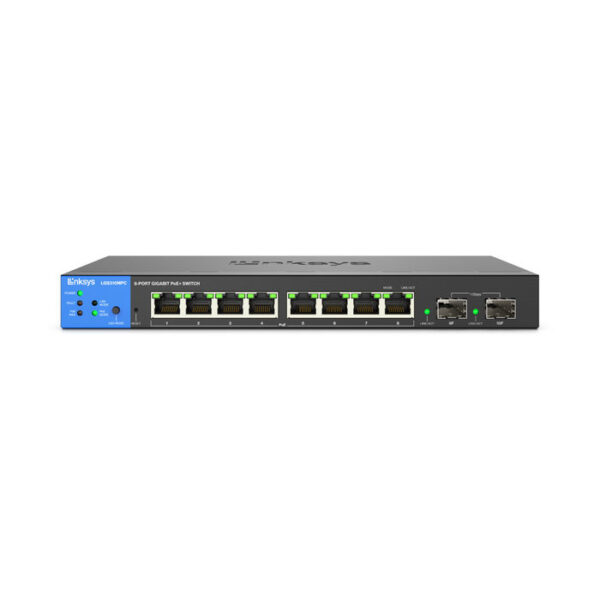

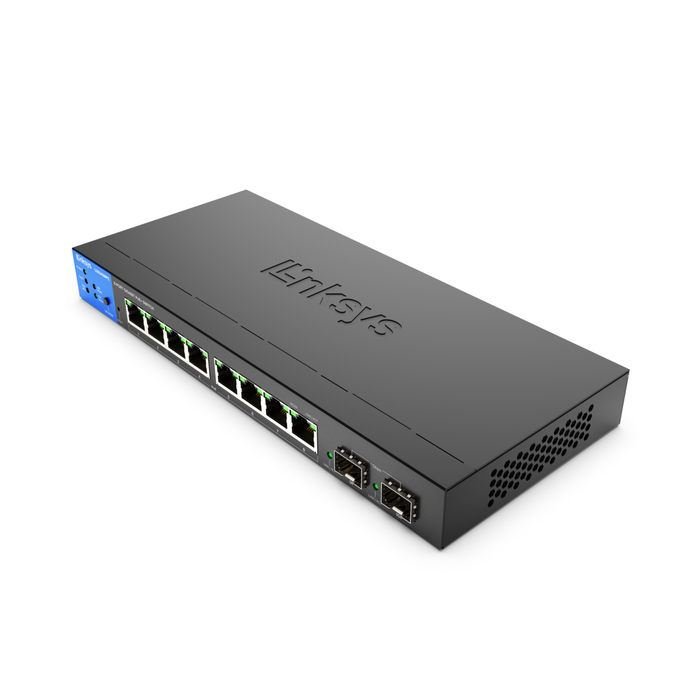

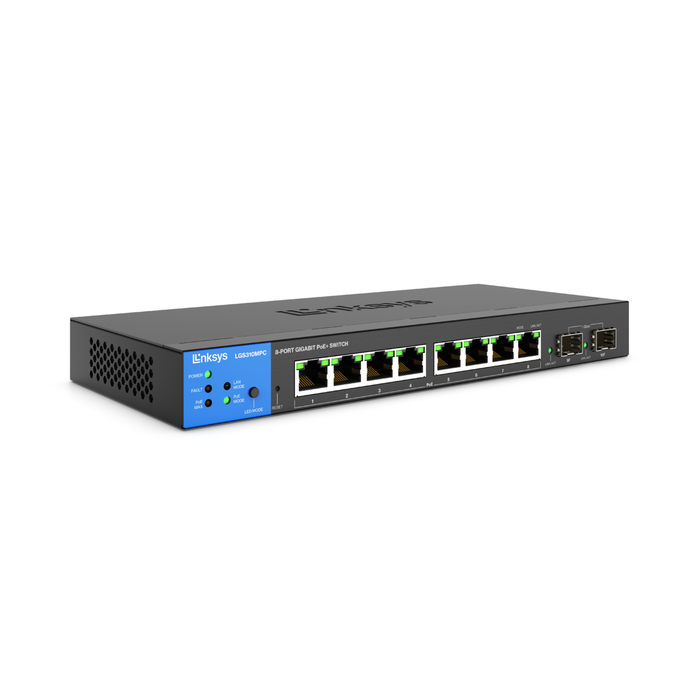

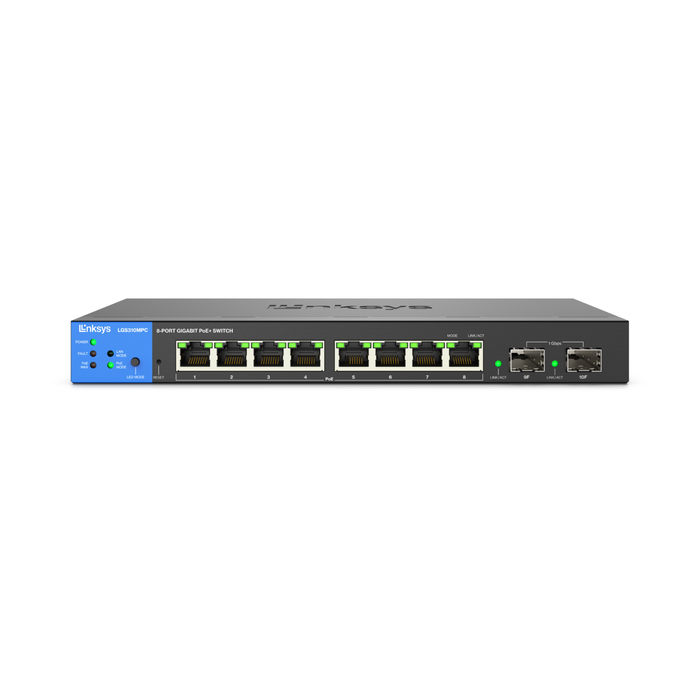

LINKSYS LGS310MPC :: 8-портов Managed Gigabit Switch, PoE+, 2x SFP
; ;
Наличност:
8 бр.
Linksys LGS310MPC 8-портов управляем гигабитов с PoE+ превключвател.
- 8 х Gigabit Ethernet PoE+ порта
- 2 х Gigabit SFP uplink порта
- PoE мощност: 110 W общa
314.00 лв.
160.55 €
8 бр.
Linksys LGS310MPC 8-портов управляем гигабитов с PoE+ превключвател.
- 8 х Gigabit Ethernet PoE+ порта
- 2 х Gigabit SFP uplink порта
- PoE мощност: 110 W общa
| model: | LGS310MPC |
| Total System Ports: | 8GE + 2 SFP |
| Copper FE/GE Ports/PoE+ (RJ-45): | Ports 1-8 |
| Ports SFP: | Ports 9-10 |

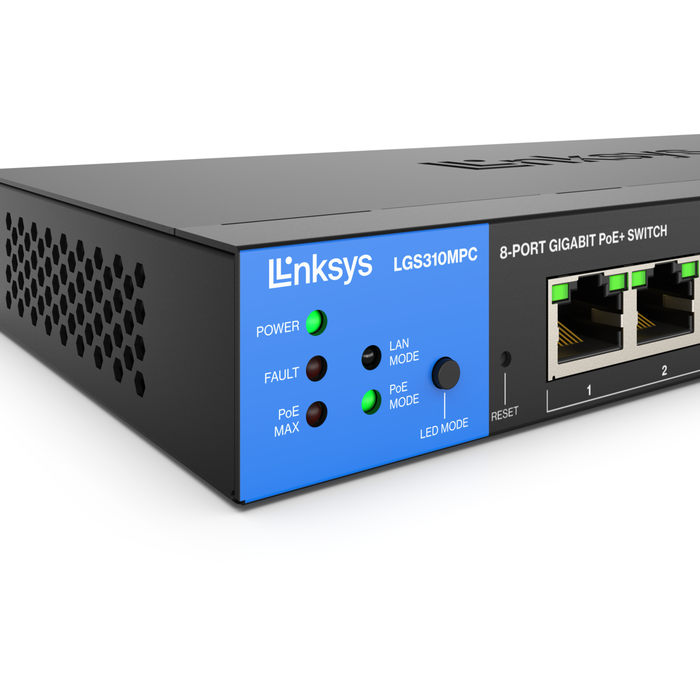

| Status LEDs: | System (blue/yellow), Link/Act(green) |
| CPU Memory DRAM: | 256MB |
| Power Input: | 12V/1A |
| Green Power Mode: | EEE |
| Max Power Consumption: | 133.77W |
| Forwarding Rate: | 14.88 Mpps |
| Switching Capacity: | 20 Gbps |
| MAC Address: | 8K |
| Jumbo Frame (FE, GE): | 10Kbytes |
| Enclosure Dimension | 240 x 105 x 27 mm |
| (L x H x W): | |
| Device Weight: | 636 g (1.34 lb) |
| Operating Temperature: | 0 to 40°C (32 to 104°F) |
| Operating Humidity: | 10 to 90% RH |
| Storage Temperature: | -40 to 70°C (-40 to 158°F) |
| Storage Humidity: | 5 to 95% RH (non-condensing) |
| Standards: | 802.3 10Base-T Ethernet, 802.3u 100Base-T Fast Ethernet, 802.3ab 1000Base-T Gigabit Ethernet, 802.3z Gigabit Ethernet, |
| 802.3x Flow Control, 802.3ad, 802.1d STP, 802.1w RSTP, 802.1s MSTP, 802.1q VLAN, 802.1p Priority QoS, | |
| 802.1x Port Access Authentication, 802.1ab Link Layer Discovery Protocol, 802.3az Energy Efficient Ethernet | |
| Spanning Tree: | IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances) |
| Link Aggregation: | IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group |
| VLAN: | Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support |
| Number of VLANs: | 256 active VLANs (4,096 range)) |
| Auto Voice VLAN: | Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels |
| IGMP Snooping | IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups |
| Head-of-Line (HOL) Blocking: | Head-of-line (HOL) blocking prevention |
| Security: | 802.1x Radius authentication, DHCP snooping, IP-MAC binding, port security supports limited dynamic lock and |
| locked MAC address (256 max entries per port), DOS Attack Prevention, Port Isolation (Protected Ports)management access control | |
| Storm Control: | Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps |
| QoS – Priority Levels: | 8 hardware queues |
| QoS – Class of Service: | Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based |
| QoS – Scheduling: | Priority queuing and weighted round robin (WRR) |
| RMON: | Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis |
| Port Mirroring: | Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer |
| Management Interface: | Built-in Web UI for easy browser-based configuration (HTTP/HTTPS) |
| Other Management: | Telnet (menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP |
| SNMP: | Version 1, 2c and 3 |
EAN: 4260184670642
| Тегло | 0.636 кг |
|---|---|
| Производител | |
| Интерфейс | Gigabit |
| Параметри Switch | 4-8 порта, PoE+ 30W, L2 Managed, VLAN, SFP |
